Clarifye
Integration Guide
The
Clarifye EHR Integrator Software must be exporting
data to your computer and a Clarifye.csv file must exist in the C:\Clarifye
folder prior to the integration with Crystal PM.
Clarifye EHR Integrator Setup
Settings:
1. Create a folder on the C: Drive and name the folder “Clarifye”
2. Install the Clarifye EHR Integrator software provided by Luxoticca
3. Enter your Store number as a seven digit number
4. Set the Import Directory to: C:\Clarifye
5. Set the Data File Name to: Clarifye.csv
6. Click on Done
7. Export a file using the instructions included with the Clarifye integrator software
CrystalPM Integration Setup
Add the Machine:
1. In Crystal, go to the Records tab
2. In Records, navigate to EHR Settings à Import Machines à Select an open Machine Slot
a. Note:
You will need to choose the same machine slot number if setting up on
multiple computers.
b. For example: If you initially choose to use machine slot 1, all other computers you will be importing data on must use Clarifye for machine slot 1
3. A window will open with a list a of machines, click on “Browse for available machines” at the bottom
4. Choose the machine labeled “Zeiss Clarifye”
5. Browse to the csv output location of the Clarifye machine (C:\Clarifye\Clarifye.csv)
6. Click open, then leave the Records tab in Crystal and then come back to it (Click on Tasks tab then click back onto records tab.)
Create
the button in records:
1. In Records, navigate to EHR Settings à Edit Medical Record Templates
2. At the bottom of the Edit Fields Window click on “Add New Field”
3. Make the field type to be a button

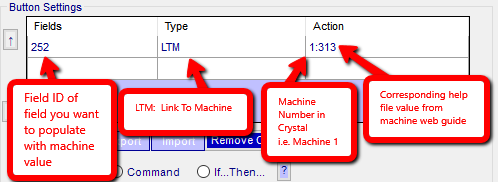

4. Assign the fields in your template to the corresponding fields from the CSV file below:
5. Add field to template and Save Changes
6.
Clarifye CSV Fields
|
1 |
Company Name |
|
2 |
Product Model |
|
3 |
Version Number |
|
4 |
Patient ID |
|
5 |
Measurement Date |
|
6 |
Age |
|
7 |
Dominant Eye |
|
8 |
PD |
|
9 |
Near PD |
|
10 |
Working Distance |
|
11 |
Unaided VA(FAR:OU) |
|
12 |
Unaided VA(FAR:Right) |
|
13 |
Unaided VA(FAR:Left) |
|
14 |
Unaided VA(NEAR:OU) |
|
15 |
Unaided VA(NEAR:Right) |
|
16 |
Unaided VA(NEAR:Left) |
|
17 |
Lensometry
Data(Sph-Right) |
|
18 |
Lensometry
Data(Cyl-Right) |
|
19 |
Lensometry
Data(Axis-Right) |
|
20 |
Lensometry
Data(ADD-Right) |
|
21 |
Lensometry Data(Hor.Prism-Right) |
|
22 |
Lensometry Data(Vert.Prism-Right) |
|
23 |
Lensometry Data(Sph-Left) |
|
24 |
Lensometry
Data(Cyl-Left) |
|
25 |
Lensometry
Data(Axis-Left) |
|
26 |
Lensometry
Data(ADD-Left) |
|
27 |
Lensometry Data(Hor.Prism-Left) |
|
28 |
Lensometry
Data(Vert.-Left) |
|
29 |
Aided VA(OU) |
|
30 |
Aided VA(Right) |
|
31 |
Aided VA(Left) |
|
32 |
Refractometry Data(Sph-Right) |
|
33 |
Refractometry Data(Cyl-Right) |
|
34 |
Refractometry Data(Axis-Right) |
|
35 |
Refractometry Data(Sph-Left) |
|
36 |
Refractometry Data(Cyl-Left) |
|
37 |
Refractometry Data(Axis-Left) |
|
38 |
Subjective Data(FAR:Sph-Right) |
|
39 |
Subjective Data(FAR:Cyl-Right) |
|
40 |
Subjective Data(FAR:Axis-Right) |
|
41 |
Subjective
Data(FAR:ADD-Right) |
|
42 |
Subjective Data(FAR:Hor.Prism-Right) |
|
43 |
Subjective Data(FAR:Vert.Prism-Right) |
|
44 |
Subjective Data(FAR:Sph-Left) |
|
45 |
Subjective Data(FAR:Cyl-Left) |
|
46 |
Subjective Data(FAR:Axis-Left) |
|
47 |
Subjective
Data(FAR:ADD-Left) |
|
48 |
Subjective Data(FAR:Hor.Prism-Left) |
|
49 |
Subjective Data(FAR:Vert.Prism-Left) |
|
50 |
Subjective
Data(FAR:VA with ADD-OU) |
|
51 |
Subjective
Data(FAR:VA with ADD-Right) |
|
52 |
Subjective
Data(FAR:VA with ADD-Left) |
|
53 |
Subjective Data(FAR:VA-OU) |
|
54 |
Subjective
Data(FAR:VA-Right) |
|
55 |
Subjective
Data(FAR:VA-Left) |
|
56 |
Subjective Data(NEAR:Sph-Right) |
|
57 |
Subjective Data(NEAR:Cyl-Right) |
|
58 |
Subjective Data(NEAR:Axis-Right) |
|
59 |
Subjective Data(NEAR:Hor.Prism-Right) |
|
60 |
Subjective Data(NEAR:Vert.Prism-Right) |
|
61 |
Subjective Data(NEAR:Sph-Left) |
|
62 |
Subjective Data(NEAR:Cyl-Left) |
|
63 |
Subjective Data(NEAR:Axis-Left) |
|
64 |
Subjective Data(NEAR:Hor.Prism-Left) |
|
65 |
Subjective Data(NEAR:Vert.Prism-Left) |
|
66 |
Subjective
Data(NEAR:VA-OU) |
|
67 |
Subjective
Data(NEAR:VA-Right) |
|
68 |
Subjective
Data(NEAR:VA-Left) |
|
69 |
Final Prescription
Data(FAR:Sph-Right) |
|
70 |
Final Prescription
Data(FAR:Cyl-Right) |
|
71 |
Final Prescription
Data(FAR:Axis-Right) |
|
72 |
Final Prescription
Data(FAR:ADD-Right) |
|
73 |
Final Prescription Data(FAR:Hor.Prism-Right) |
|
74 |
Final Prescription
Data(FAR:Vert.Prism-Right) |
|
75 |
Final Prescription
Data(FAR:Sph-Left) |
|
76 |
Final Prescription
Data(FAR:Cyl-Left) |
|
77 |
Final Prescription
Data(FAR:Axis-Left) |
|
78 |
Final Prescription
Data(FAR:ADD-Left) |
|
79 |
Final Prescription
Data(FAR:Hor.Prism-Left) |
|
80 |
Final Prescription
Data(FAR:Vert.Prism-Left) |
|
81 |
Final Prescription
Data(FAR:VA with ADD-OU) |
|
82 |
Final Prescription
Data(FAR:VA with ADD-Right) |
|
83 |
Final Prescription
Data(FAR:VA with ADD-Left) |
|
84 |
Final Prescription
Data(FAR:VA-OU) |
|
85 |
Final Prescription
Data(FAR:VA-Right) |
|
86 |
Final Prescription
Data(FAR:VA-Left) |
|
87 |
Final Prescription
Data(NEAR:Sph-Right) |
|
88 |
Final Prescription
Data(NEAR:Cyl-Right) |
|
89 |
Final Prescription
Data(NEAR:Axis-Right) |
|
90 |
Final Prescription
Data(NEAR:Hor.Prism-Right) |
|
91 |
Final Prescription
Data(NEAR:Vert.Prism-Right) |
|
92 |
Final Prescription
Data(NEAR:Sph-Left) |
|
93 |
Final Prescription
Data(NEAR:Cyl-Left) |
|
94 |
Final Prescription
Data(NEAR:Axis-Left) |
|
95 |
Final Prescription
Data(NEAR:Hor.Prism-Left) |
|
96 |
Final Prescription
Data(NEAR:Vert.Prism-Left) |
|
97 |
Final Prescription
Data(NEAR:VA-OU) |
|
98 |
Final Prescription
Data(NEAR:VA-Right) |
|
99 |
Final Prescription
Data(NEAR:VA-Left) |
|
100 |
NPC Data(CM) |
|
101 |
NPC Data(MA) |
|
102 |
NPC Data(Prism) |
|
103 |
NPA Data(CM) |
|
104 |
NPA Data(Diopter) |
|
105 |
NRA Data(Blur) |
|
106 |
NRA Data(Recovery) |
|
107 |
PRA Data(Blur) |
|
108 |
PRA Data(Recovery) |
|
109 |
NRC Data(FAR:Blur) |
|
110 |
NRC Data(FAR:Break) |
|
111 |
NRC Data(FAR:Recovery) |
|
112 |
PRC Data(FAR:Blur) |
|
113 |
PRC Data(FAR:Break) |
|
114 |
PRC Data(FAR:Recovery) |
|
115 |
NRC Data(NEAR:Blur) |
|
116 |
NRC Data(NEAR:Break) |
|
117 |
NRC Data(NEAR:Recovery) |
|
118 |
PRC Data(NEAR:Blur) |
|
119 |
PRC Data(NEAR:Break) |
|
120 |
PRC Data(NEAR:Recovery) |
|
121 |
Prism Test-Schober(FAR:Hor.Prism-Right) |
|
122 |
Prism Test-Schober(FAR:Vert.Prism-Right) |
|
123 |
Prism Test-Schober(FAR:Hor.Prism-Left) |
|
124 |
Prism Test-Schober(FAR:Vert.Prism-Left) |
|
125 |
Prism Test-Schober(NEAR:Hor.Prism-Right) |
|
126 |
Prism Test-Schober(NEAR:Vert.Prism-Right) |
|
127 |
Prism Test-Schober(NEAR:Hor.Prism-Left) |
|
128 |
Prism Test-Schober(NEAR:Vert.Prism-Left) |
|
129 |
Prism Test-Von Graefe(FAR:Hor.Prism-Right) |
|
130 |
Prism Test-Von Graefe(FAR:Vert.Prism-Right) |
|
131 |
Prism Test-Von Graefe(FAR:Hor.Prism-Left) |
|
132 |
Prism Test-Von Graefe(FAR:Vert.Prism-Left) |
|
133 |
Prism Test-Von Graefe(NEAR:Hor.Prism-Right) |
|
134 |
Prism Test-Von Graefe(NEAR:Vert.Prism-Right) |
|
135 |
Prism Test-Von Graefe(NEAR:Hor.Prism-Left) |
|
136 |
Prism Test-Von Graefe(NEAR:Vert.Prism-Left) |
|
137 |
Prism
Test-Coincidence(FAR:Hor.Prism-Right) |
|
138 |
Prism
Test-Coincidence(FAR:Vert.Prism-Right) |
|
139 |
Prism
Test-Coincidence(FAR:Hor.Prism-Left) |
|
140 |
Prism
Test-Coincidence(FAR:Vert.Prism-Left) |
|
141 |
Prism
Test-Coincidence(NEAR:Hor.Prism-Right) |
|
142 |
Prism
Test-Coincidence(NEAR:Vert.Prism-Right) |
|
143 |
Prism
Test-Coincidence(NEAR:Hor.Prism-Left) |
|
144 |
Prism
Test-Coincidence(NEAR:Vert.Prism-Left) |
|
145 |
Prism
Test-Polarized Cross(FAR:Hor.Prism-Right) |
|
146 |
Prism
Test-Polarized Cross(FAR:Vert.Prism-Right) |
|
147 |
Prism
Test-Polarized Cross(FAR:Hor.Prism-Left) |
|
148 |
Prism Test-Polarized
Cross(FAR:Vert.Prism-Left) |
|
149 |
Prism
Test-Polarized Cross(NEAR:Hor.Prism-Right) |
|
150 |
Prism
Test-Polarized Cross(NEAR:Vert.Prism-Right) |
|
151 |
Prism
Test-Polarized Cross(NEAR:Hor.Prism-Left) |
|
152 |
Prism
Test-Polarized Cross(NEAR:Vert.Prism-Left) |
|
153 |
Prism
Test-Polarized Cross w/ Fix.(FAR:Hor.Prism-Right) |
|
154 |
Prism
Test-Polarized Cross w/ Fix.(FAR:Vert.Prism-Right) |
|
155 |
Prism
Test-Polarized Cross w/ Fix.(FAR:Hor.Prism-Left) |
|
156 |
Prism
Test-Polarized Cross w/ Fix.(FAR:Vert.Prism-Left) |
|
157 |
Prism
Test-Polarized Cross w/ Fix.(NEAR:Hor.Prism-Right) |
|
158 |
Prism
Test-Polarized Cross w/ Fix.(NEAR:Vert.Prism-Right) |
|
159 |
Prism
Test-Polarized Cross w/ Fix.(NEAR:Hor.Prism-Left) |
|
160 |
Prism
Test-Polarized Cross w/ Fix.(NEAR:Vert.Prism-Left) |
|
161 |
Prism Test-Maddox
Rod(FAR:Hor.Prism-Right) |
|
162 |
Prism Test-Maddox
Rod(FAR:Vert.Prism-Right) |
|
163 |
Prism Test-Maddox
Rod(FAR:Hor.Prism-Left) |
|
164 |
Prism Test-Maddox
Rod(FAR:Vert.Prism-Left) |
|
165 |
Prism Test-Maddox
Rod(NEAR:Hor.Prism-Right) |
|
166 |
Prism Test-Maddox
Rod(NEAR:Vert.Prism-Right) |
|
167 |
Prism Test-Maddox
Rod(NEAR:Hor.Prism-Left) |
|
168 |
Prism Test-Maddox
Rod(NEAR:Vert.Prism-Left) |
|
169 |
Bino. Visual Function
Test-Worth(FAR) |
|
170 |
Bino. Visual Function
Test-Stereo(FAR) |
|
171 |
Bino. Visual Function
Test-Minute Stereo(FAR) |
|
172 |
Bino. Visual Function
Test-Hor. Aniseikonia(FAR) |
|
173 |
Bino. Visual Function
Test-Vert. Aniseikonia(FAR) |
|
174 |
Bino. Visual Function
Test-Worth(NEAR) |
|
175 |
Bino. Visual Function
Test-Stereo(NEAR) |
|
176 |
Bino. Visual Function
Test-Minute Stereo(NEAR) |
|
177 |
Bino. Visual Function
Test-Hor. Aniseikonia(NEAR) |
|
178 |
Bino. Visual Function
Test-Vert. Aniseikonia(NEAR) |
|
179 |
Keratometry
Data(R1:mm-Right) |
|
180 |
Keratometry
Data(R1:Diopter-Right) |
|
181 |
Keratometry
Data(R1:Axis-Right) |
|
182 |
Keratometry
Data(R1:mm-Left) |
|
183 |
Keratometry
Data(R1:Diopter-Left) |
|
184 |
Keratometry
Data(R1:Axis-Left) |
|
185 |
Keratometry
Data(R2:mm-Right) |
|
186 |
Keratometry
Data(R2:Diopter-Right) |
|
187 |
Keratometry
Data(R2:Axis-Right) |
|
188 |
Keratometry
Data(R2:mm-Left) |
|
189 |
Keratometry Data(R2:Diopter-Left) |
|
190 |
Keratometry
Data(R2:Axis-Left) |
|
191 |
End of Data |
